Connecting Rods used in a Typical WCHT-72 Layout



WCHT-72 to HB Sliding Derail

70" rod with 4" offset for far rail application.
PN: 70-1050
70" rod without offset for far rail application.
PN: 70-1051
55" rod with 4" offset for near rail application.
PN: 70-1052
55" rod without offset for near rail application.
PN: 70-1053

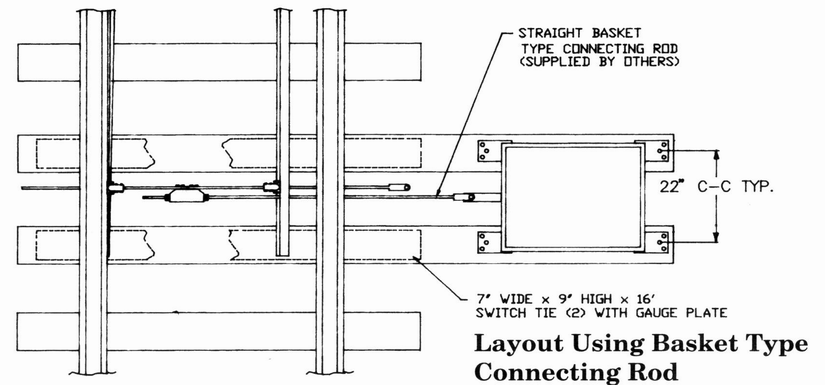

WCHT-72, Basket Type, to switch point.

Forged rod with clevis pin and 2 basket nuts only.
Rods are 1-3/8" diameter with 30" of 1-1/4" thread.

84" straight rod.
PN: 70-2100
84" insulated straight rod.
PN: 70-2100-I
84" rod with 4" offset.
PN: 70-2101
84" insulated rod with 4" offset.
PN: 70-2101-I

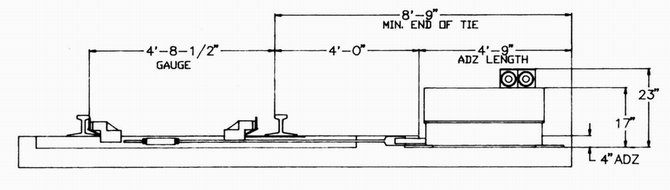

WCHT-72 Switch Machine

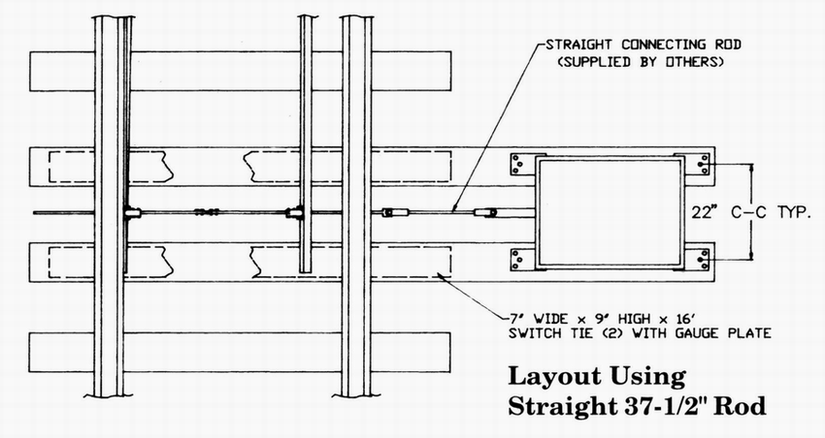

Typical Layout
