Position Indicator Light Assembly

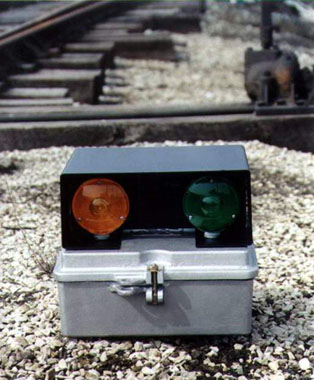

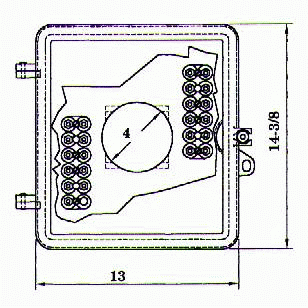

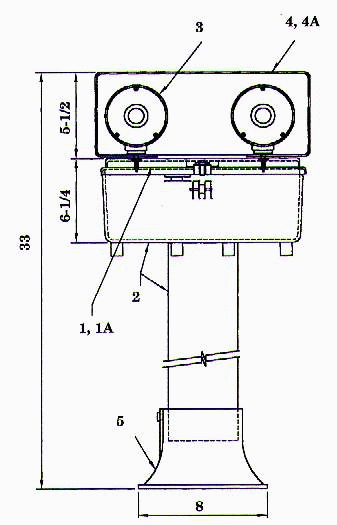

The Western-Cullen-Hayes Model 1236-70, cast aluminum position indicator is not only an economical alternative to expensive dwarf signals, but doubles as a terminal housing. The Model 1236-70 is used in conjuction with switch circuit controllers, or external control logic, to give train crews a positive read-back of the position of switch points or derails. The two aspect signal lights on the Model 1236-70 are specially modified four inch diameter lights which use a standard 10 volt, 18 watt signal lamp. Lenses are available in red, green, amber, blue, and clear.

Consult Western-Cullen-Hayes with your indicator light, cable entrance and terminal configuration requirements.
