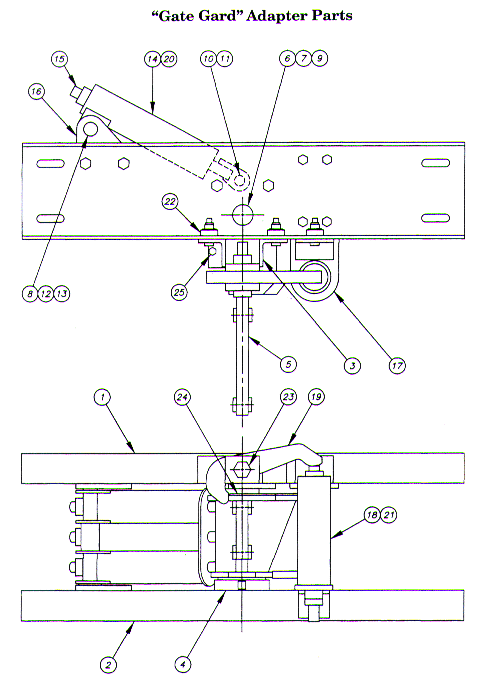

"Gate-Gard" Adapter Parts List
|
Reference
|
Description
|
Part No.
|
|
1
|
Top Cross Channel |
C-1034
|
|
2
|
Bottom Cross Channel |
C-1035
|
|
3
|
Upper Hinge Bracket |
C-1036
|
|
4
|
Lower Hinge Bracket |
A-1288
|
|
5
|
Gate Arm Adapter |
C-1037
|
|
6
|
Hinge Pin Bushing |
A-1289
|
|
7
|
Thrust Washer |
81-1029
|
|
8
|
Thrust Washer |
A-1290
|
|
9
|
Hinge Pin |
A-1298
|
|
10
|
Spring Rod Connecting Pin |
A-1299-1
|
|
11
|
Spring Rod Spacer |
A-1300-1
|
|
12
|
Return Spring Housing Pin |
A-1301-1
|
|
13
|
Spring Pin Spacer |
A-1302-1
|
|
14
|
Return Spring Housing |
B-1069-1
|
|
15
|
Spring Connecting Rod |
A-1306-1
|
|
16
|
Spring Anchor Bracket |
A-1309
|
|
17
|
Latch Spring Housing |
C-1047
|
|
18
|
Latch Spring Rod |
A-1313
|
|
19
|
Latch Hook |
B-1071
|
|
20
|
Return Spring |
A-1148-6
|
|
21
|
Latch Spring |
81-1045
|
|
22
|
Bevel Washer - 3/8" |
A-1314
|
|
23
|
Latch Hook Pivot Pin |
A-1315
|
|
24
|
Wear Plate |
B-1074
|
|
25
|
Brass Shear Pin |
38-0027-13
|
