Bonding Drill

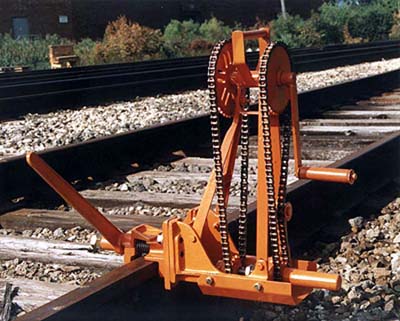

The Western-Cullen-Hayes Model HD-350 Bonding Drill is engineered to provide a safe, economical means for one man to accurately drill holes in the rail head or web. Simple attachment and adjustment features permit efficient drilling of bond and channel pin holes in all types of rail from 80 to 150 pounds, yet allowing for instant drill removal when necessary.

HD-350 Bonding Drill Features

  • Positive drilling feed with special gear reduction system
  • Easily set depth gauge, adjusting nuts control depth of hole
  • Drill mounts/dismounts with one simple movement of lever
  • Three tough jaw points take a firm bite in head of rail
  • Adjustable to any height
  • Clamp clears all standard angle bars
  • Accomodates rail from 80 to 150 lbs.
  • Ease in bonding through turnouts
  • Ball valve oilers provided for bearings
  • Frame is a rugged steel weldment
  • Four models of chuck and spindle assemblies
